Fish Carrier Vessel
Model	Diameter(m)	Weight
130SW	40.1	1000-1500t
140SW	42.0	1500-2000t
150SW	45.8	2000-2500t
160SW	49.6	2500-3000t
170SW	53.4	3000-3600t
180SW	57.2	3600-5000t

For Security Purpose
Model	Diameter(m)	Weight
12SW	3.8	5t
16SW	5.0	10t
18SW	5.7	16t
20SW	6.3	22t
22SW	7.0	30t
24SW	7.6	40t
26SW	8.2	50t
28SW	8.9	60t
32SW	10.1	80t
36SW	11.4	100t
42SW	13.3	150t
50SW	16.2	200-300t
60SW	19.0	300-500t
70SW	21.9	500-700t
80SW	25.7	700-900t

For Squid Fishing Vessel
Model	Diameter(m)	Weight
70FW	21.9	60-80t
80FW	25.7	80-100t
90FW	28.6	100-150t
100FW	32.4	150-200t
110FW	35.3	200-250t
120FW	38.1	250-300t
130FW	40.1	300-350t
140FW	42.0	350-400t
150FW	45.8	400-500t
160FW	49.6	500-700t
170FW	53.4	700-900t
180FW	57.2	900-1000t
185FW	59.2	1000-1300t
190FW	61.1	1300-1600t
200FW	64.9	1600-2200t

Advantage

• Super Strong:
  Our sea anchor (para-anchor) is elegantly made of special nylon materials to coordinate with specific ropes. Its endurance is excellent.
• Special Stability:
  Our sea anchor (para-anchor) is designed according to the principle of hydrodynamics. Its tide-resistance is special strong.
• Simple Operation:
  It will automatically open after throwing into the sea and it is easy to be collected.

Opportunity of Usage

• Normal Fishing :

While fishing boat using jigging machine for fishing squids, or sets net (such as gill net) or long line in the fishery area, fishing boat must keep its engine on, in order to maintain the boat keeping a certain distance with their fishing gear. In this way, it is not only a loss of fuel but also a big loss for the life of engines. At this moment, if our sea anchor is used, the boat will be stabilized naturally, the boat’s engines can be stopped to save fuel and to lengthen the life of engines. Meanwhile, fishermen can take a rest without any worry.

• Bad Weather or Boat in Risk :

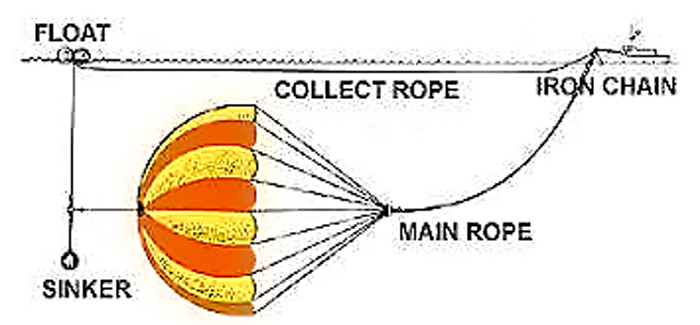

When ship is under voyage or operation and meets bad weather or drifts in risk, human life and property are under serious threat. At this opportunity, our sea anchor can be connected with main rope, connecting rope and float to be thrown into the sea. Then, our sea anchor will open immediately to keep ship and waves in vertical condition so as to decrease the degree of striking and shocking to the ship by waves. In this way, ship can be stabilized to avoid damage and collapse. Human life and property on the ship can thus be protected and men on the ship can get over the risk safely. Our sea anchor affords excellent security and convenience.
