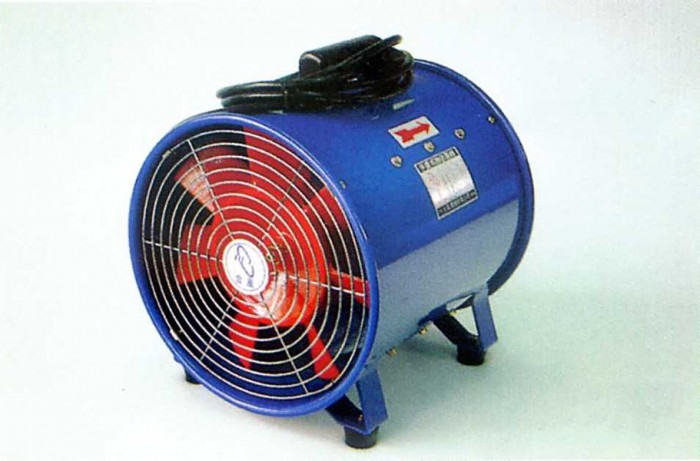

Hand Extract Metallurgy Air Blast
No：O0001

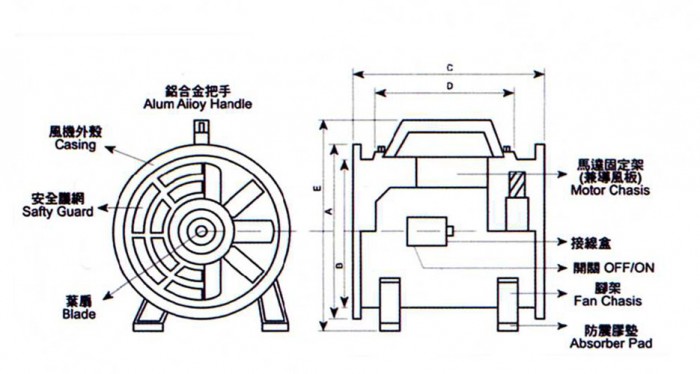

| Model | Watts | Volts | Poles | Frequency(Hz) | Flow(m³/Min) | Pressure(m/aq) | R.P.M | Phase | Wieght(kg) | Size(mm) | ||||
| A | B | C | D | E | ||||||||||
|
HF-200 8" |
150 | 110 | 2 | 50 | 25 | 35 | 2930 | Single Phase | 9 | 235 | 210 | 260 | 100 | 290 |
| 220 | 60 | 30 | 42 | 3460 | ||||||||||
|
HF-300 12" |
550 | 110 | 2 | 50 | 60 | 40 | 2930 | Single Phase | 18 | 315 | 290 | 320 | 100 | 360 |
| 220 | 60 | 70 | 50 | 3460 | ||||||||||
