Compressor
Home　/　Products　/　Compressor　/　Machines

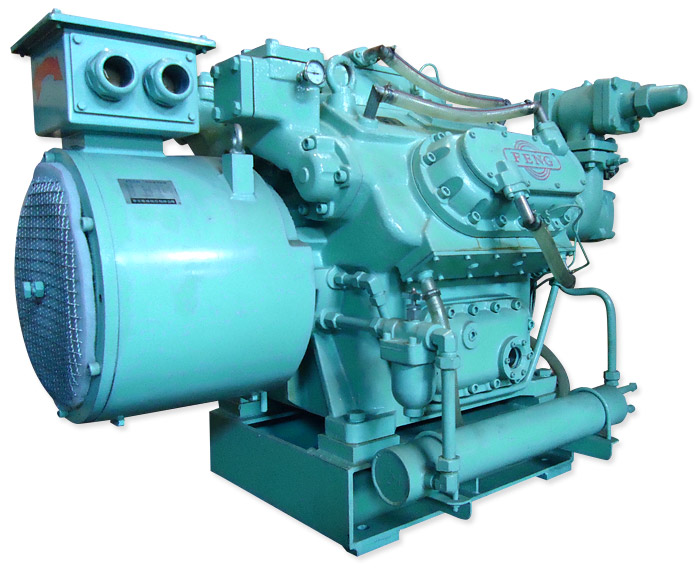

AV42RM-Two-Stage Compressor
No：I0005
| Specification | |||||
| cyl.Bore x Stroke　(mm) | 132x106 | ||||
| No. Of Cylinders | Low Stage　４ | High Stage　２ | |||
| Capacity Control | 4 + 2 → 2 + 2 | ||||
| Standard Speed | 1200 r.p.m | ||||
| Net Weight | 1750 KG | ||||
| Refrigeration Capacity　(BT) | Nh3 | 30.84 | R22 | 30.47 | |
| Standard Motor　(KW) | Nh3 | 45 | R22 | 45 | |
| Refrigerant Connections | Suction |
Low Stage　90mm
|
High Stage　65mm | ||
| Discharge | Low Stage　65mm | High Stage　50mm | |||
