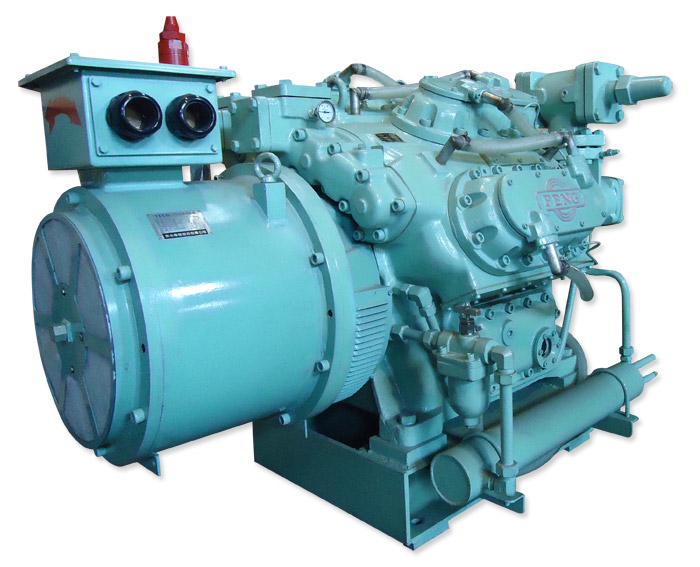

AV62RM-Two-Stage Compressor
No:I0006
Specification | |||||
cyl.Bore x Stroke (mm) | 132x106 | ||||
No. Of Cylinders | Low Stage 6 | High Stage 2 | |||
Capacity Control | 6 + 2 → 4 + 2 → 2 + 2 | ||||
Standard Speed | 1200 r.p.m | ||||
Net Weight | 2064 KG | ||||
Refrigeration Capacity (BT) | Nh3 | 30.84 | R22 | 30.47 | |
Standard Motor (KW) | Nh3 | 60 | R22 | 60 | |
Refrigerant Connections | Suction |
Low Stage 100mm
|
High Stage 65mm | ||
Discharge | Low Stage 65mm | High Stage 50mm |
