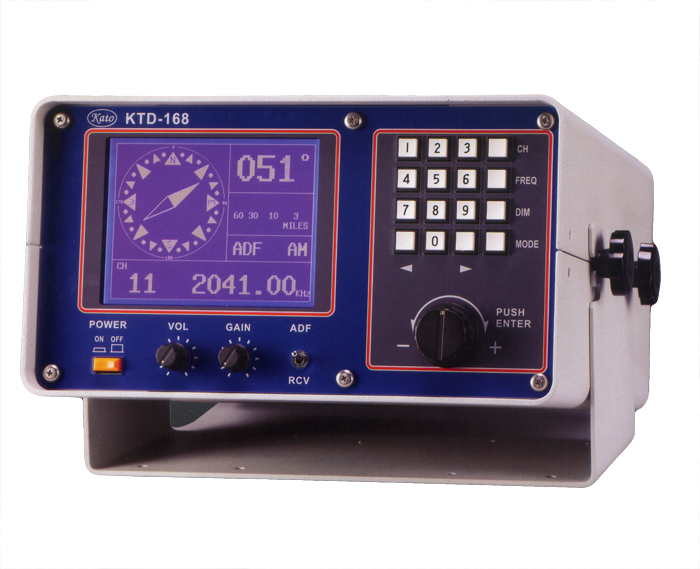

MF/HF Automatic Direction Finder
No嚗J0012
Features:
- Synthesized double superheterodyne receiver.
- Frequency range from 200KHZ to 10MHZ.
- Reception modes selectable(AM,CW).
- Up to 99 memory channels for spot reception.
Specifications:
- Frequency Range嚗200 KHz - 9.999 MHz
- Intermediate Frequency嚗1ST→10.7MHz
2ND→455KHz - Wave Form嚗A1A3E
- Display嚗LCD Azimuth
Frequency - Spot Memory嚗99 Channels
- Selectivity嚗When 6db more than ±2KHz
When 60db less than ±5KHz - Power嚗DC24V/3.5A
- Loop Antenna嚗805mmΦ
- Antenna Cable嚗5 Cored Coaxial Cable

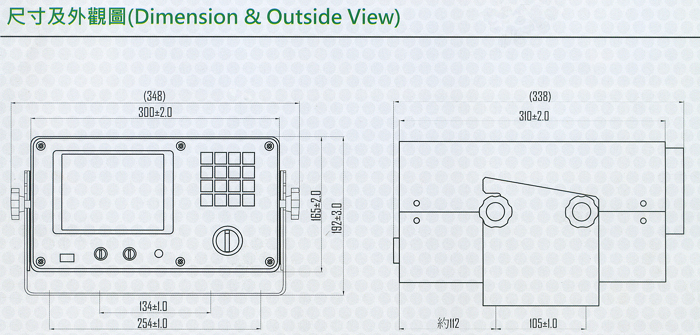

- Size & Weight嚗 H嚗192mm W嚗336mm D嚗332mm Weight嚗8.0Kg
