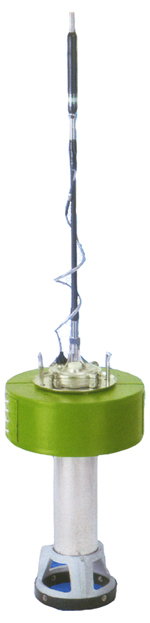

GPS Buoy
No嚗J0013
|
Transmit Frequency
|

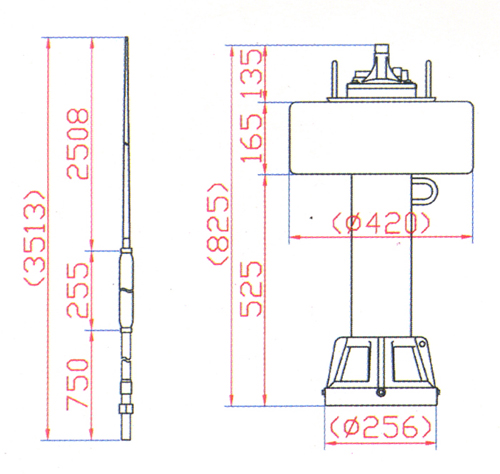

Height(with Antenna)
|
Service Range
|
Transmit Cycle
|
|
1700KHZ~4000KHZ
|
4225mm
|
100~300NM
|
3times within 15sec
|
Introduction

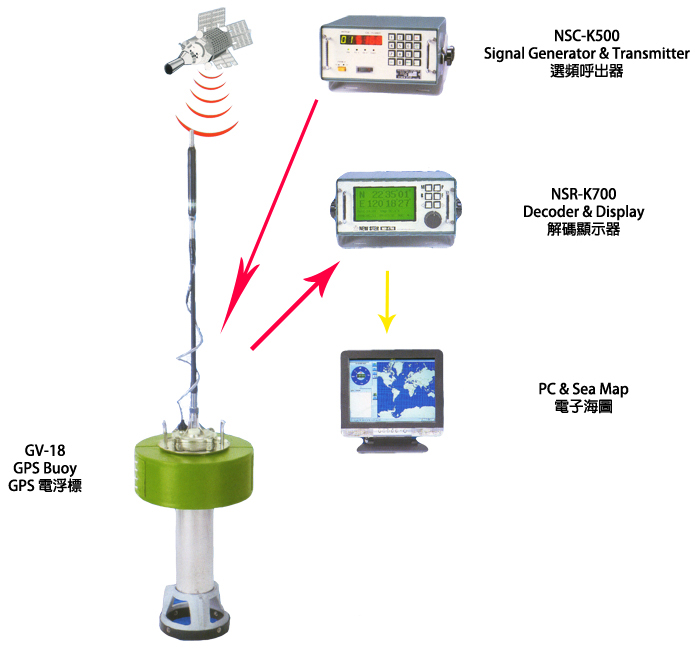

GPS Sel-Call Radio Buoy System is the most effective application for locating your GPS buoy. GPS Buoy GV-18 transmits its answer signal only when they receive the calling signal from NSC-K500 Signal Generator & Transmitter setting on mother vessels. It can avoid the position of your fishing gear found by other vessels. NSC-K500 can generate and transmit a calling signal to call GV-18 without other external transmitter or SSB. When GV-18 receive calling signal, it stars to transmit answer signal.
The signal received from GV-18 by a radio receiver then transfers the signal to NSR-K700 Decoder & Display to show following data嚗
嚗Position(Latitude and Longitude)
嚗Water temperature
嚗Remaining battery voltage
嚗Date and GMT Time
嚗Buoy's ID Number
NSR-K700 is able to be connected with a programmed PC & Plotting System to calculate and show GV-18 GPS buoy's relational data on monitor.
